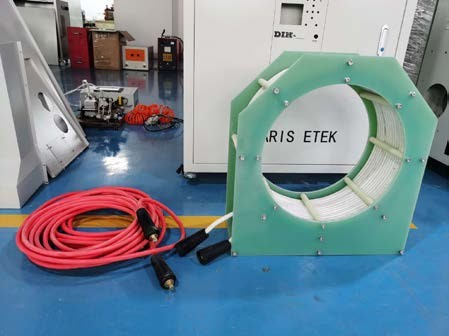

60kw Induction Preheat Post Weld Heat Treatment Machine PWHT Stress Relieving
Air cooled induction heating machine for PWHT and pre-weld heat treatment product features:
1. Heat treatment of metals: hardening, tempering, and annealing.
2. Heating prior to deformation: forging, swaging, upsetting, bending, and piercing.
3. Brazing and Soldering: brazing of steel, brass, and copper to each other in combination and aluminum to aluminum.
4. Shrink fitting: In any manufacturing process, for example, shrink fitting of motor rotors to shafts, shrink fitting of shell casings for compressors.
5. Coating: Of dissimilar metals, prior to insulation, and curing, such as paint.
6. Melting: Of all types of metals.
7. Other applications include crystal growing, cap sealing, sintering, carbon vapor deposition, levitation, exit axial deposition, and plasma generation.
Technical parameters of induction heat treatment machine:
| Rated output power | 60KW | 100KW | 200KW | 300KW | 30KW |
| Duty Cycle / Cycle Time | 0.5/10min | 0.5/10min | 0.5/10min | 0.5/10min | 0.5/10min |
| Output power range | 2-100% | 2-100% | 2-100% | 2-100% | 2-100% |
| Frequency Range | 0.5—10KHz | 0.5—10KHz | 0.5—10KHz | 0.5—10KHz | 0.5—10KHz |
| Efficiency | 0.93 | 0.93 | 0.93 | 0.93 | 0.93 |
| Voltage | 380V±10% | 380V±10% | 380V±10% | 380V±10% | 380V±10% |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Rated current | 90A | 160A | 320A | 480A | 45A |
| Power Factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| Minimum circuit breaker | 3P-125A | 3P-200A | 3P-400A | 3P-630A | 3P-125A |
| Power cable system | 3L＋PE | 3L＋PE | 3L＋PE | 3L＋PE | 3L＋PE |
| Recommended incoming wire | 3×25mm² | 3×50mm² | 3×90mm² | 3×180mm² | 3×25mm² |
| Working temperature | 40℃~+60℃ | 40℃~+60℃ | 40℃~+60℃ | 40℃~+60℃ | 40℃~+60℃ |
| Mainframe size(mm) | 630*500*1050 | 720*520*1100 | 660x885x1640 | 660x885x1640 | 500*500*850 |
Advantages of Air cooled induction heating machine for PWHT and pre-weld heat treatment
1. Energy saving, Environmental protection, Low pollution level;
2. Easy operation, can be equipment with PLC controller;
3. Miniature and light weight, Economic Space Occupation, Easy installation;
4. Customized services, producing machines according to customer's requirement.
Applications of Air-Cooled Induction Heating Machine :
Recommended advice:
Because the heat treatment process takes a long time, the actual power used by the equipment is not very large. Generally, the power selection is carried out in combination with the material, diameter, thickness and heating temperature of the pipeline. Usually, 60kw is recommended for 500mm diameter, and 100kw is recommended for 500-1200mm diameter.
Frequency selection: verified by field operation, the heating effect is the best when the frequency is 2K-5KHz
